The 10mm — Powerful Pistols and Revolvers

October 10, 2019 by Bob Campbell 2 Comments

The past few months have been good to the 10mm cartridge and 10mm pistol fans. While sales and popularity of the .40 Smith and Wesson seem to be slipping, the 10mm is enjoying a comeback. New pistols including the Kimber Custom II, the now well-established Ruger SR1911, and even a double-action revolver have been met with enthusiasm.

Bob Campbell shooting a 1911 10mm pistol with a two-handed grip
The Ruger SR1911 10mm is a great all-around handgun.

There is much to like about the 10mm. It is a powerful, but controllable, cartridge with excellent accuracy potential. The 10mm was designed as a custom handgun cartridge to shoehorn a .400-inch projectile into a 9mm platform. This didn’t work out well, and competitors such as the .41 Action Express did not prosper.

Cutting up (then rare in the states) CZ 75s and fabricating parts resulted in the original Bren Ten pistol. Eventually, the 10mm was shortened to the .40 Smith and Wesson and the original design envelope was realized by placing the cartridge into 9mm-size frames. The .40 offers excellent wound ballistics and penetration in its size glass. For general use and police service, it is a good cartridge but falls short of the expectations of many hard core handgunners. The 10mm demands a .45-size frame. This is ideal for many of us as the size and weight of the heavier pistol offer good control.

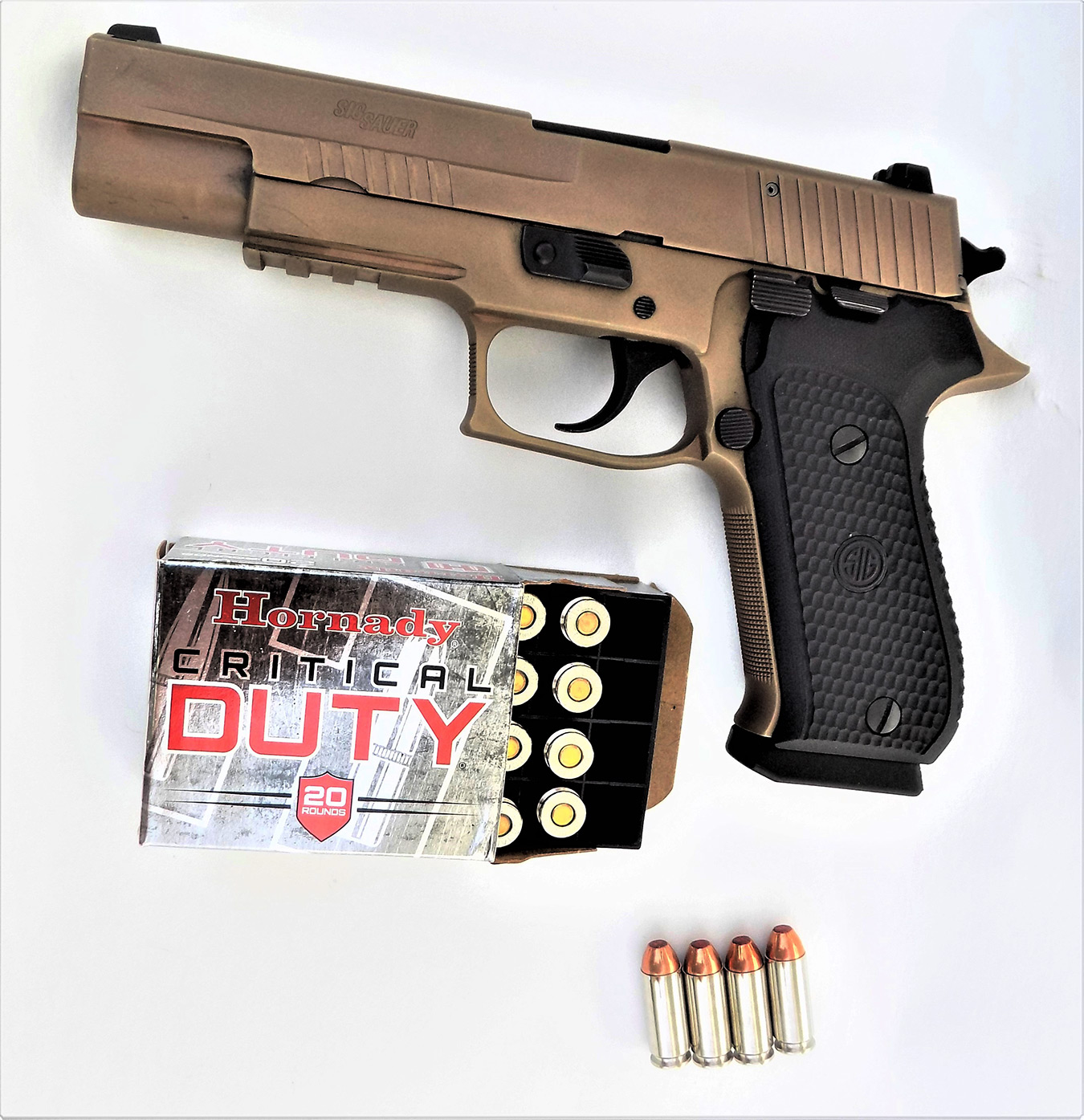

SIG Sauer Emperor Scorpion pistol left profile with Hornady Critical Duty ammunition box
A powerful 10mm handgun and well-chosen ammunition is a viable go anywhere do anything handgun.

The Full Monte

There is a need among some shooters for a cartridge more powerful than the .45 ACP in the 1911 platform. The .45 Super was one attempt that for several reasons has not been generally adopted by the shooting public. The 10mm is ideal for the 1911, big-frame Glock, and large-frame CZ platform.

The 10mm offers range and penetration improvements over both the .40 and the .45 cartridges. While weapon wear is a concern, with the proper recoil spring system this is less of a consideration. With attention to load practice, the 10mm responds well to cartridge development, both by handloaders and the factory. As Colonel Cooper said, there are things that may be accomplished at 50 yards with the 10mm that cannot be accomplished with the .45. Unlike the .40 and .45, the 10mm qualifies as a go-anywhere do-anything handgun capable of personal defense, defense against dangerous animals, and hunting game in the deer and boar classes. In this regard, it is similar to the once immensely popular .44-40 WCF cartridge.

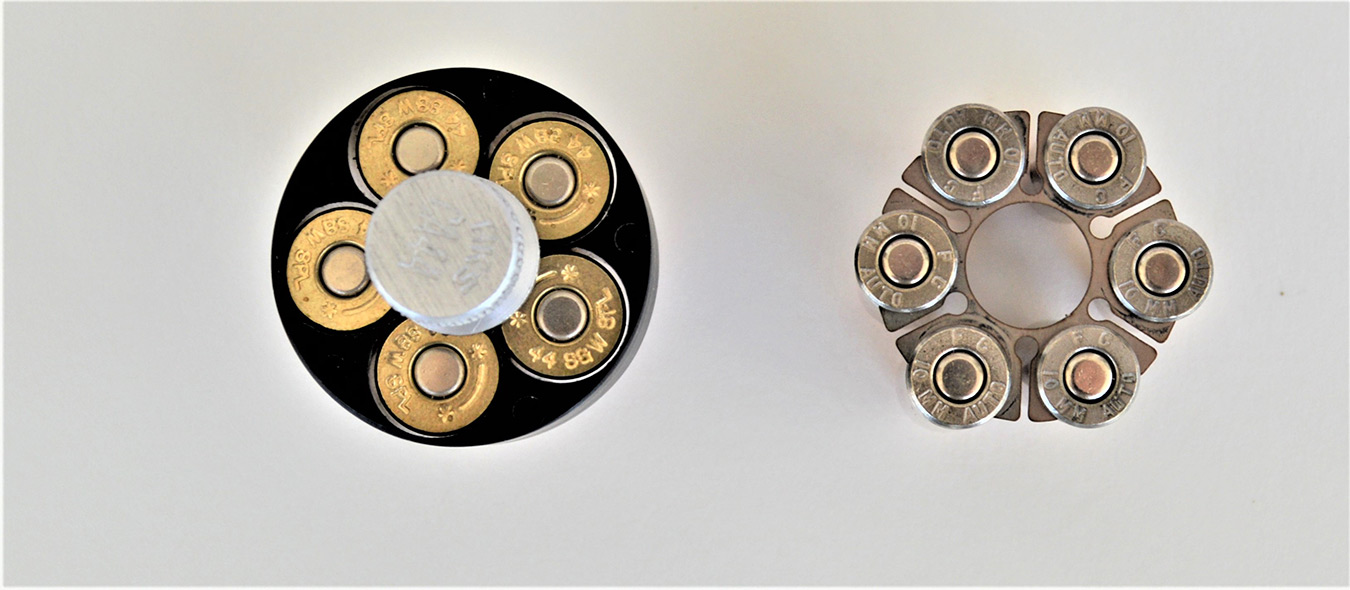

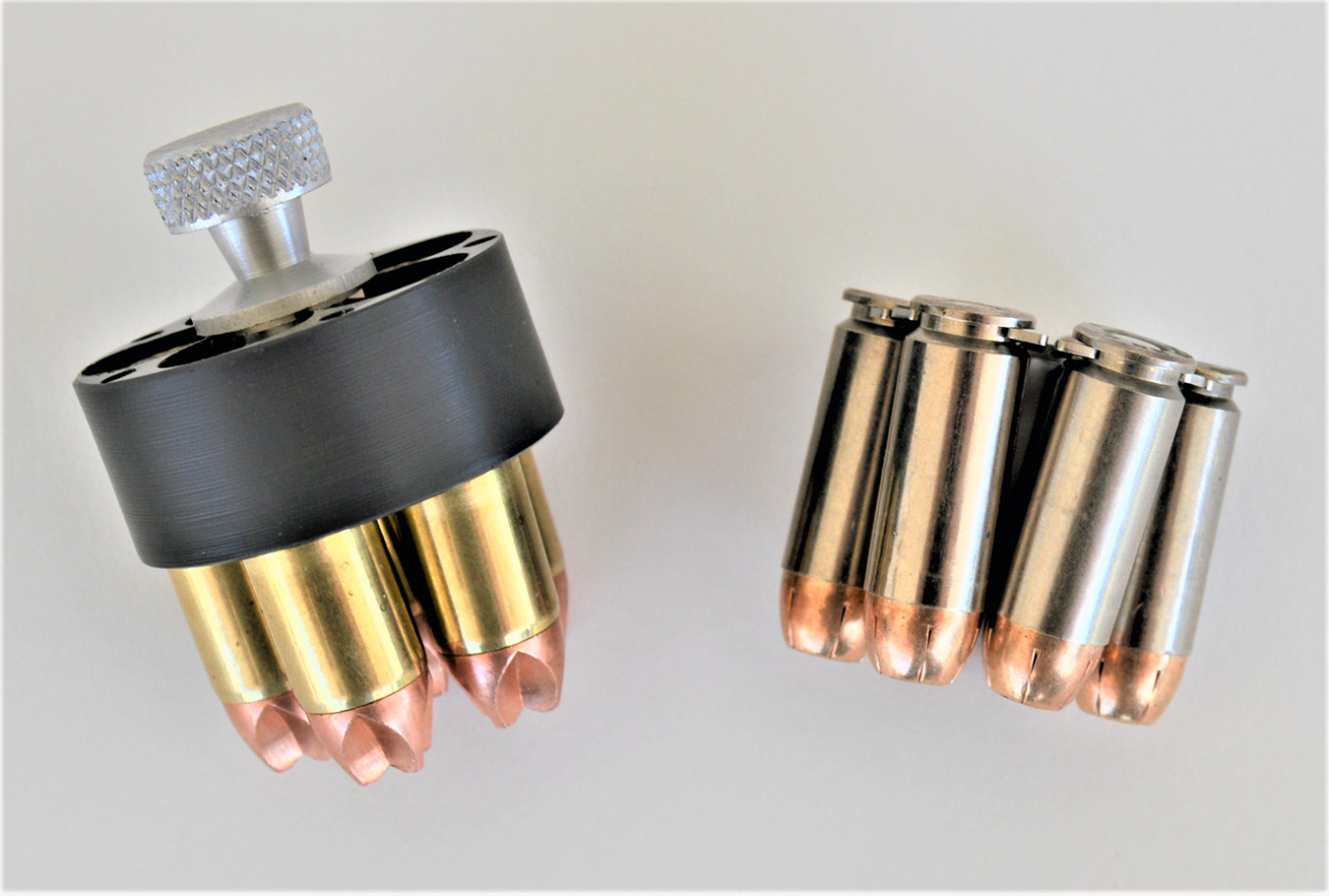

Revolver speed loader versus a loaded moon clip, top view
A revolver speed loader aids in quickly loading a conventional revolver. The moon clip option, right, allows even faster loading providing the revolver is chambered for a self-loading pistol cartridge.

Comparisons: 10mm vs. .357 Mag.

An inevitable comparison of the 10mm and .357 Magnum must be addressed—particularly in light of the introduction of the Ruger GP100 10mm revolver. It is generally assumed the .357 Magnum is more powerful than the 10mm. With modern loads this isn’t necessarily true.

Another advantage is that the 10mm begins with a .400-inch bullet. Whether it expands or not, the frontal diameter of the 10mm is greater than the .357 Magnum. Top end loads, such as the .357 Magnum Buffalo Bore 180-grain hard cast, will beat the 10mm for pure energy and penetration when fired in like barrel lengths. Barring the Coonan, however, the .357 Magnum is a revolver cartridge. This makes the 10mm a very interesting cartridge for those who prefer the self-loader for personal defense, but it isn’t just for automatics anymore!

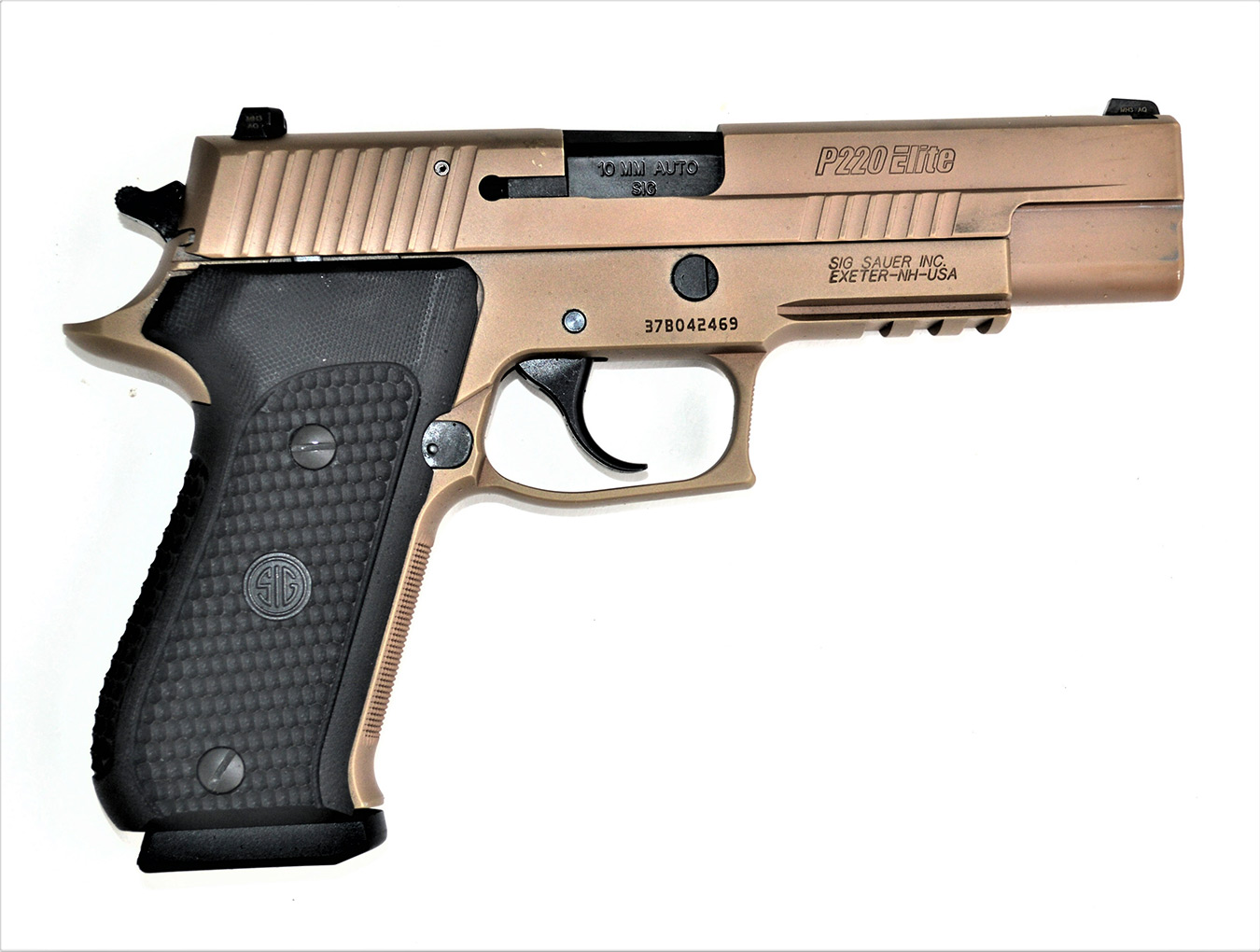

SIG Sauer Emperor Scorpion pistol right profile bronze color
The SIG Sauer Emperor Scorpion is among the most accurate 10mm handguns available.

The 10mm Revolver Option

The story of revolvers chambered for self-loading cartridges is a long one. Since self-loading pistol cartridges do not have a cartridge case rim, moon clips are necessary for proper headspace. Revolvers chambered for an automatic pistol cartridge will chamber and fire the cartridges OK, but they will not eject. Revolvers have been chambered in .38 Super, 9mm, .40, 10mm, and .45 ACP — even the .380 ACP.

Ruger’s GP100 is a rugged, reliable, and accurate revolver that is a natural for the 10mm. While the piece may appeal to those who own a self-loader, this revolver is a good option for anyone wanting a powerful and reliable handgun. The Match Champion version of the GP100 features a fiber optic front sight and well-designed grips. These wood grips appear larger than the usual rubber factory grips at first glance, but the cross section is actually smaller than standard GP100 grips and fits my average sized hands well. They are long, which makes for a good fit for larger hands, but not thick. The combination of a high-visibility fiber optic front sight and fully-adjustable rear sight make for excellent hit probability.

Ruger 10mm revolver with a fixed sight quartering
Ruger’s fixed sight GP100, offered in .357 Magnum, will be an outstanding choice in the new 10mm chambering.

The stainless steel revolver features a four-inch barrel. The barrel profile differs from the .357 Magnum and is pleasing in appearance. The action is smooth in double-action fire and the single action trigger is crisp enough for good accuracy. Due to the larger hole in the barrel and chambers, the Ruger GP100 Match Champion 10mm is lighter than the .357 Magnum version at 37 ounces. The revolver is wider and bulker to conceal than a 1911, but the proper holster goes a long way toward addressing this. Mine often rides in a pancake-style holster from DM Bullard.

The question might be why the 10mm revolver? Due to its popularity, 10mm ammunition is readily available—more so than the .41 Magnum, as an example. Recoil is less than most magnum cartridges, and the 10mm offers good performance at long range. It isn’t a magnum, but the 10mm is a respectable number. Consult the tables and you will find excellent performance.

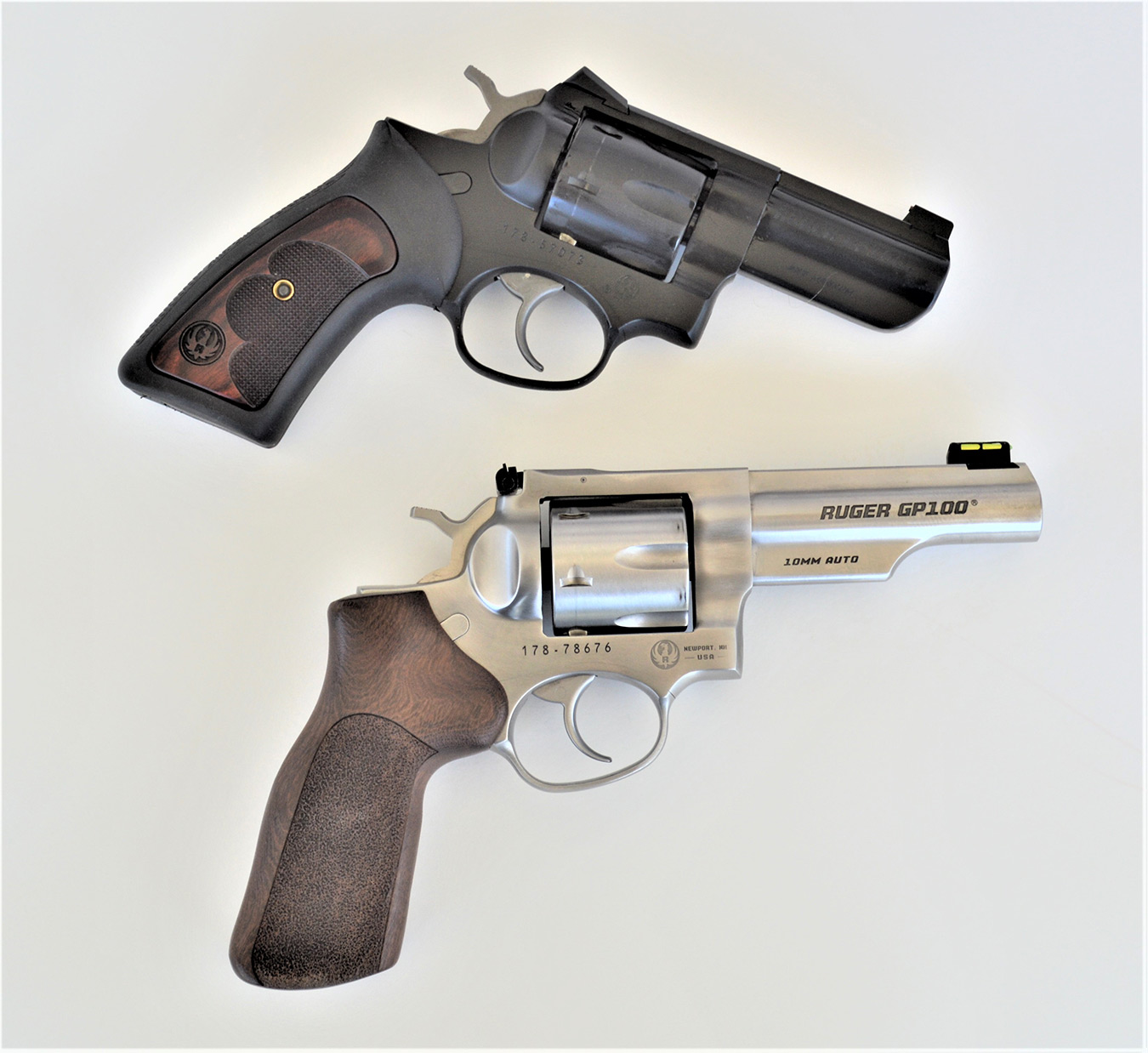

.357 Magnum revolver top and 10mm revolver bottom
The .357 Magnum, top, is well established but the 10mm GP100, bottom, is a viable alternative.

While some prefer a revolver, the self-loader is controllable in rapid fire and puts hits into a target more quickly—no argument there. But animal attacks in the field often demand that the handgun be pressed into the animal’s body and fired repeatedly. The automatic would jam after the first shot. The revolver will keep firing.

This is an old story—revolver versus self-loader—that continues to be played out on a daily basis. The bottom line is that either will save your life, if you practice with the chosen handgun. There are advantages to the revolver that cannot be overlooked. Either type is well suited in 10mm for the person who desires more power for one reason or the other. The 10mm is also much easier to master than the .41 Magnum for field use, and it seems it will prove easier to master than the .357 Magnum. As for combat practice those using these powerful handguns rely on a fast and powerful first-shot hit delivered with good accuracy. It isn’t about peppering the target as much as hitting the target and putting it down for the count.

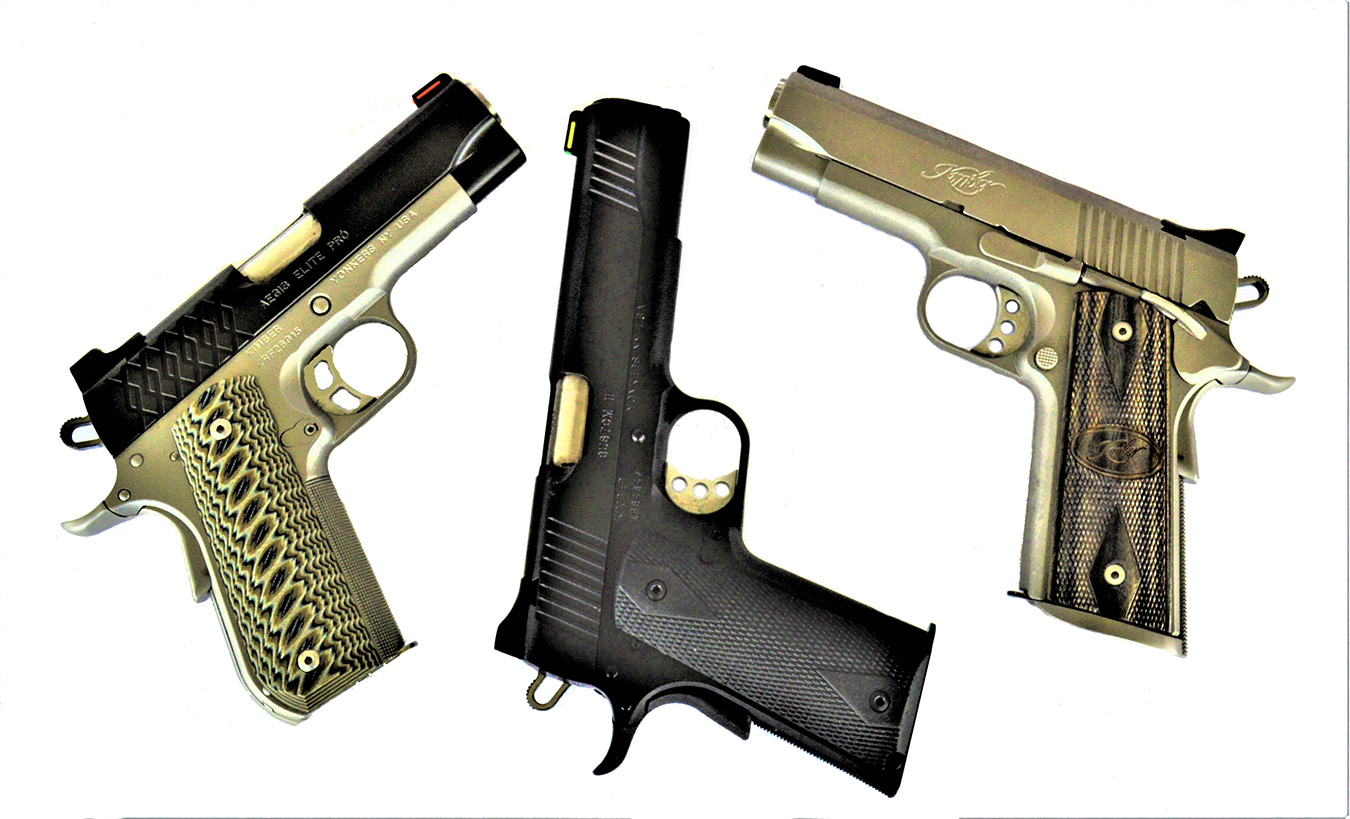

Left to right: 9mm, 10mm and .45 pistols from Kimber.
Left to right: 9mm, 10mm and .45 pistols from Kimber. Each is useful.

A few words on moon clips…

Shoot for the Moon

An advantage of moon clips in loading and unloading compared to conventional revolvers is that spent cartridge cases are easily ejected whether the barrel is pointed upward or downward. You need not be concerned with a cartridge case rim becoming trapped under the ejector star when the cases are attached to a thin steel moon clip. When using a moon-clipped revolver, loading is fast and positive. Keep the finger tips near the front of the cartridge and guide them into the chamber, then press the six cartridges home.

Another Option

The .40 S&W option, the GP100 will not accept .40 S&W ammunition, it simply falls into the chamber. However, by utilizing moon clips the .40 functions as well as the 10mm. Ruger’s newly-designed moon clips are superior to any previous design. They are secure, have a bit of spring in them, and are easily loaded and unloaded. Accuracy isn’t quite up to the 10mm, but it is good.

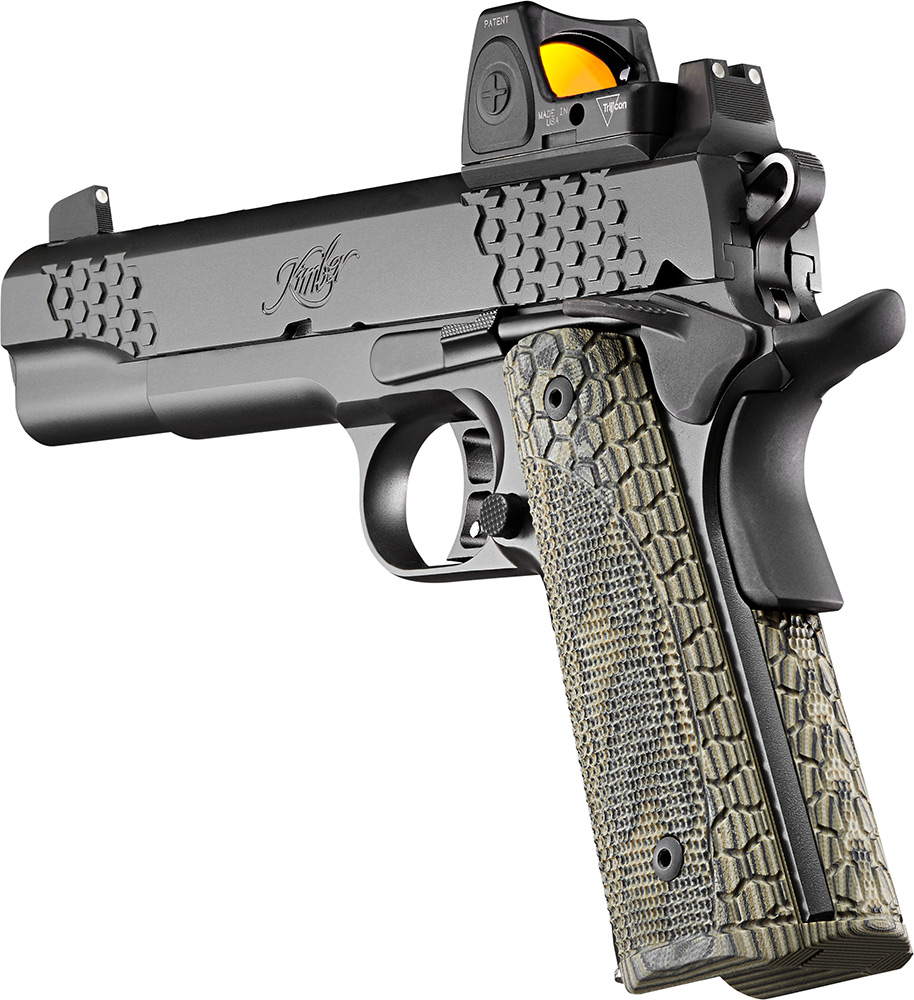

Kimber 1911 pistol with red dot sight
Kimber offers thoroughly modern 1911 handguns.

The SIG Sauer Elite 180-grain JHP breaks about 990 fps in the Ruger — plenty for defense use. These loads allow for excellent control. While wound potential is high recoil is not and these loads make a reasonable choice for personal and home defense. Few if any handgun cartridges will provide a better balance of wound potential and control than the .40 S&W in this revolver. The ballistics are basically those of the old .41 Special, an expensive custom proposition. Pistolsmiths rebored an L frame or GP100 .357 Magnum to a special shortened .41 Magnum. The GP100 10mm is superior in every regard.

Self-Loaders — It’s All in the Springs.

A significant difference in handling and recoil impulse between two pistols may be traced to the recoil spring. As an example, the Ruger SR1911 10mm exhibits healthy recoil. It will feed and function with lighter 10mm loads. When I first obtained the Kimber Custom II 1911 in 10mm, I was disappointed that it would not cycle with my 180-grain 1,050 fps handloads. When I moved to full-power 10mm loads, I was surprised. The Kimber not only functioned perfectly but recoil was considerably abated.

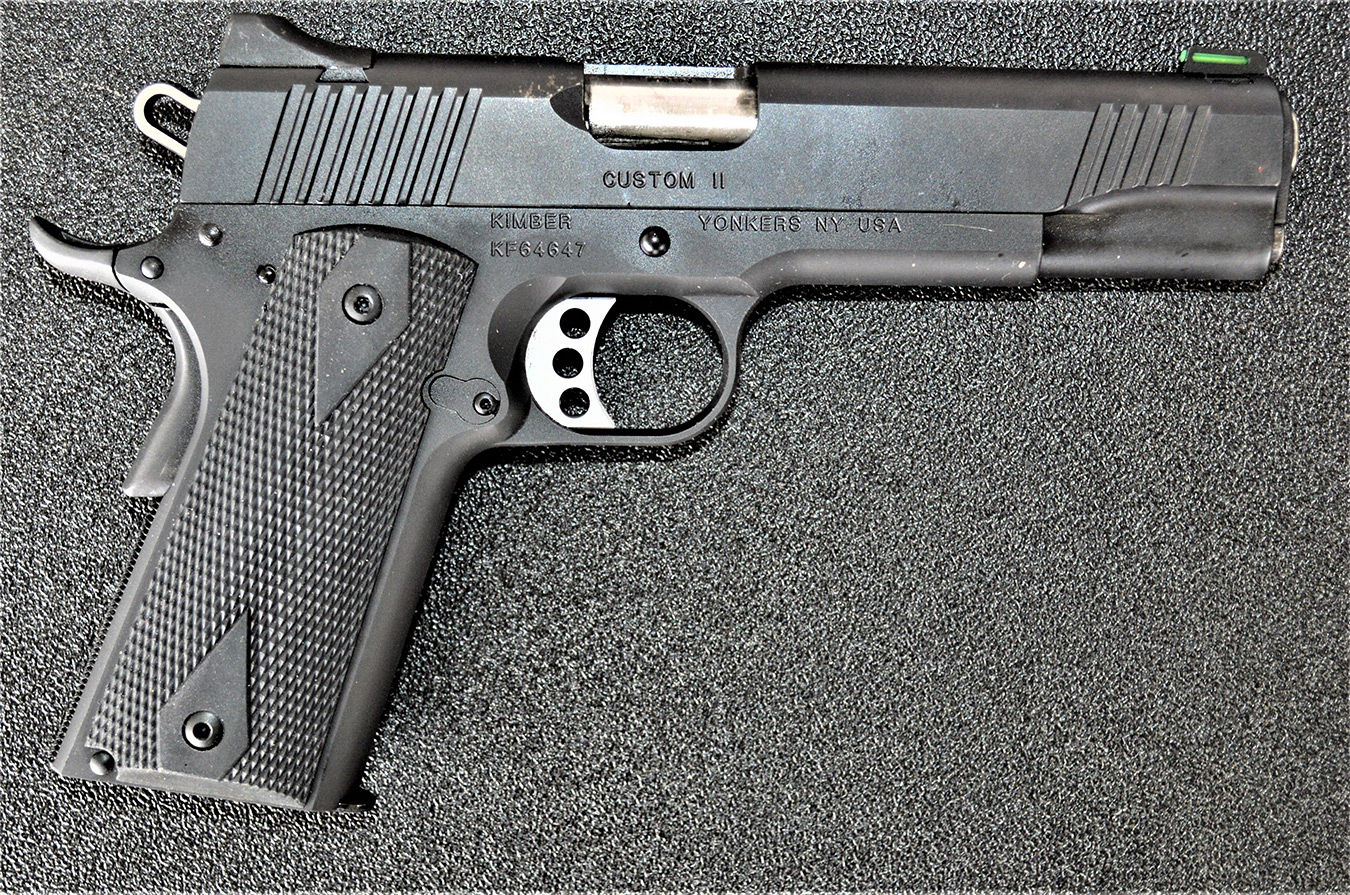

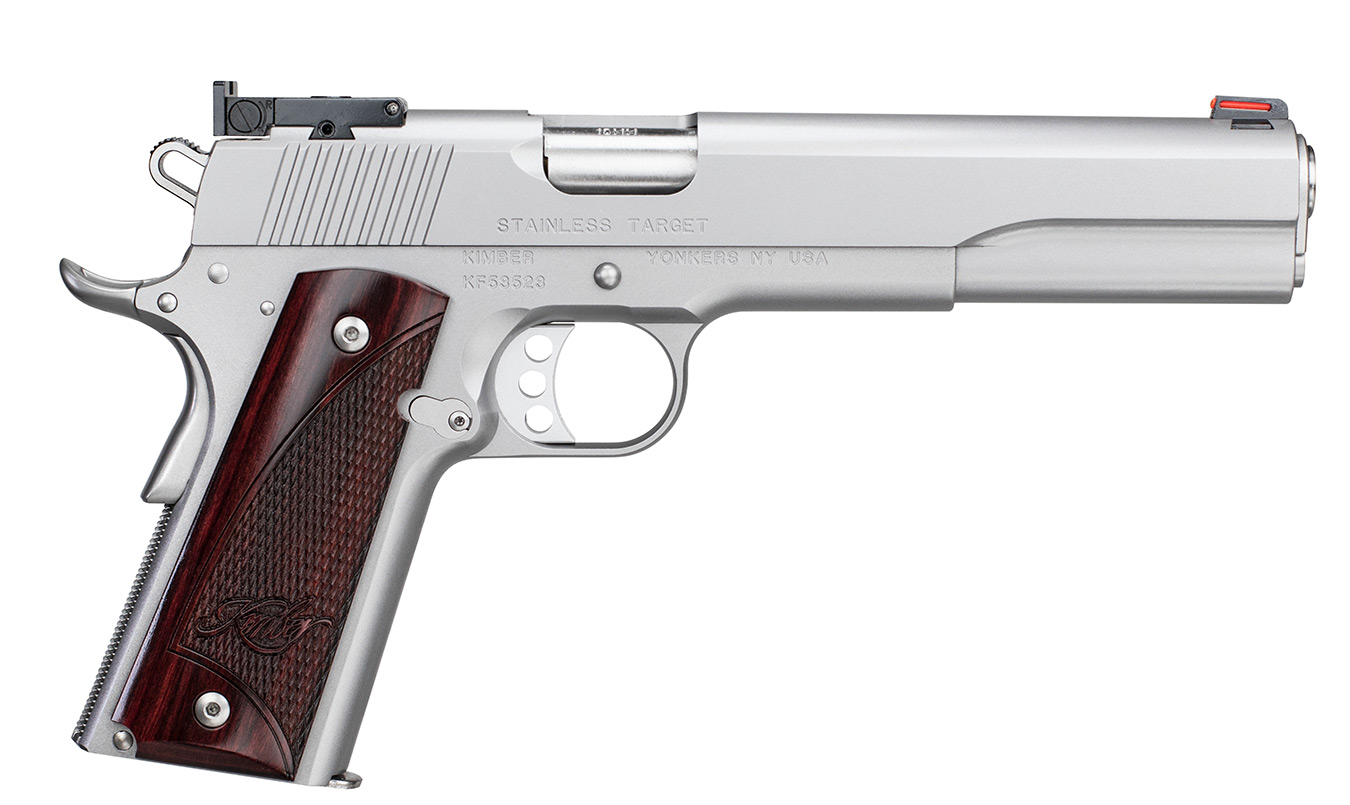

Kimber 10mm pistol right profile
The Kimber 10mm pistol is a first class all-around automatic.

A heavy recoil spring that harnesses the power of the 10mm is essential. You may change the recoil spring for a lighter version for lighter loads. (Try the Wilson Combat Spring Caddy.) The Ruger isn’t a bad gun and will feed any commercial loading. The Kimber, as delivered, is properly set up for heavy loads. A heavy recoil spring and Wilson Combat magazines makes for a service-grade set up for the Ruger SR1911 as well.

10mm Ammunition Selection

The first question when choosing ammunition must be “Is it reliable?” There are good loads available that are feed, cycle, and function reliably. The Hornady 10mm 155- and 180-grain XTP loads have proven accurate in the Ruger 10mm handguns, both revolver and automatic. The 155-grain load expands more quickly and offers an excellent balance of penetration and expansion. The 180-grain load is a good hunting load for taking thin skinned game.

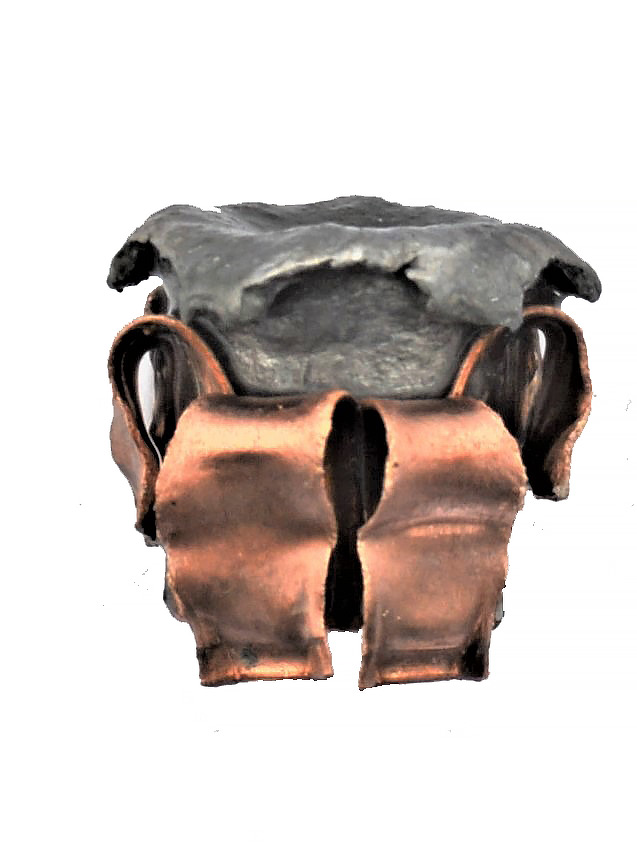

upset Hornady XTP bullet
Hornady’s XTP is among the best bullets ever designed for the 10mm.

I like the Critical Duty 175-grain load for general use. Designed for those agencies that issue the 10mm, this is a first-class service load. A relatively new choice is the Speer 200-grain Gold Dot. This load has a good balance of expansion and penetration. Feed reliability and accuracy are excellent. For those desiring to deploy a load for protection against the big cats and feral dogs, one of Buffalo Bore’s hard-hitting, all-copper hollow points fill the bill. For protection against bears, and this is a stretch for any handgun, Buffalo Bore’s hard-cast bullets offer extreme penetration that just may do the business.

Federal Cartridge Company introduced one of the most powerful factory 10mm loads are few years ago. The 180-grain bonded core load breaks a solid 1,275 fps in most handguns. This is an excellent hunting load that has taken its share of deer. For those wishing to limit penetration in home defense, Honor Defense — maker of the Honor Guard pistols — offers a special composition bullet that rapidly fragments in gelatin testing but offers good penetration against light cover. The SIG Sauer Elite V Crown JHP is available, affordable, and effective for personal defense. In short, 10mm ammunition selection is broad and very interesting.

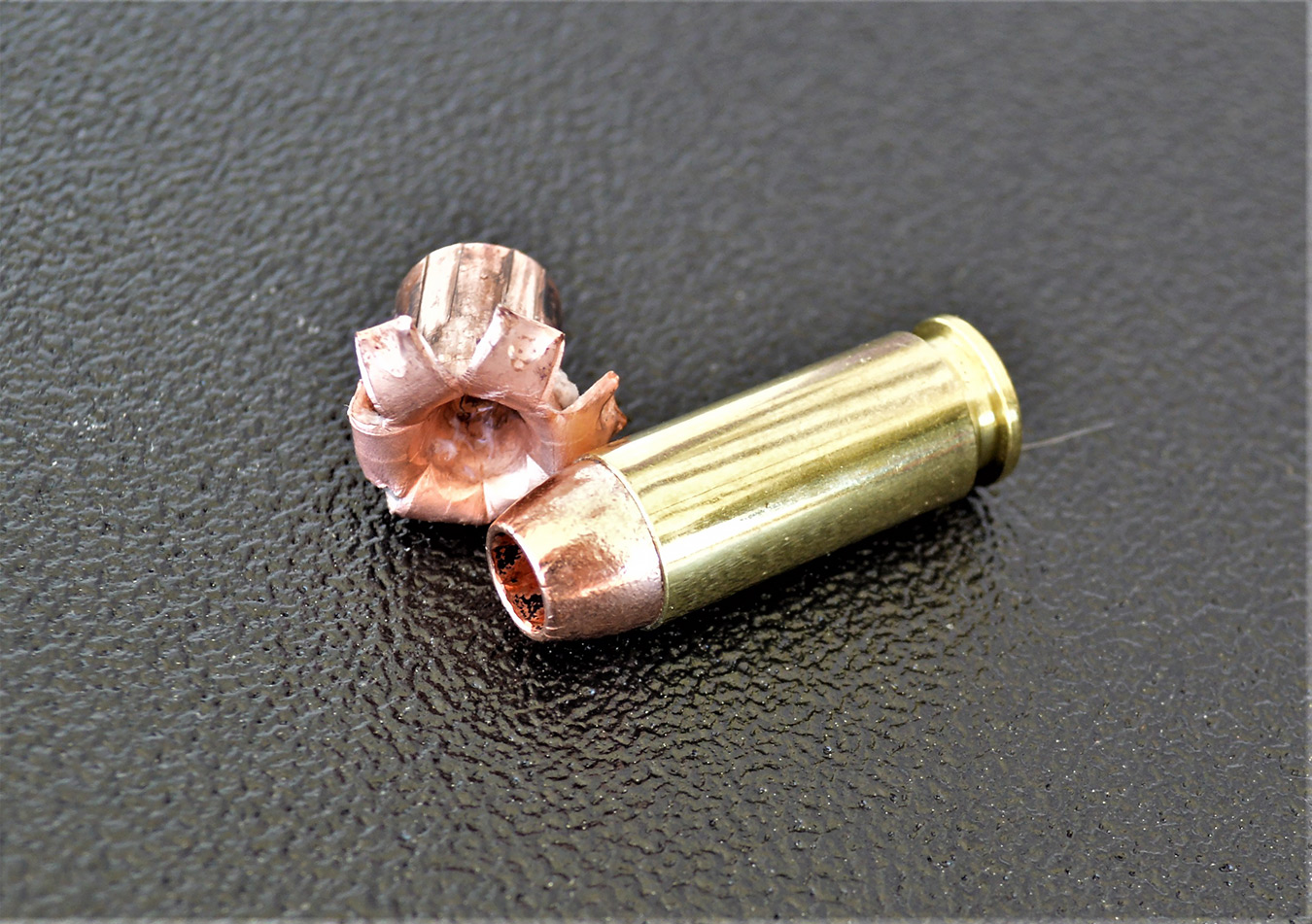

all-copper hollow point cartridge from Buffalo Bore Ammunition
Buffalo Bore’s all-copper hollow point is an outstanding choice.

Practical Use

Many shooters with extensive experience prefer a harder hitting caliber than the 9mm or .40 S&W but do not necessarily wish to step up a hard-kicking magnum. Magnum loads in the revolver and the high intensity .357 SIG (in the automatic) are often hard on the mechanism. The handguns do not blow up or crack frames, but wear on small parts is increased. The 10mm offers a viable alternative in a standard .41 frame revolver or .45 frame automatic. The 10mm offers good accuracy in the right handgun and the cartridge hits hard.

Many Choices

If you do not prefer the 1911 or a revolver, there are other alternatives. The Springfield XD is now available in 10mm. This is a modern striker-fired polymer-frame handgun that will give the Glock 20 a run for its money. The single most accurate 10mm self-loader I have fired, bar none, is the SIG P220 Emperor Scorpion. Whatever action type you prefer, even if it is a single action revolver, the 10mm is readily available. The 10mm may also be the best choice for heavy defense use among modern handgun cartridges.

Are you a 10mm fan? Do you own a 10mm for hunting or defense? Why? Share your answers in the comment section.

Bob Campbell shooting a 1911 10mm pistol with a two-handed grip
The Ruger SR1911 10mm is a great all-around handgun.
Bob Campbell shooting a 1911 10mm pistol with a two-handed grip
The 10mm is controllable offhand for those that practice.
barrel to slide fit on the Ruger SR1911 pistol
The Ruger SR1911’s barrel to slide fit is excellent.

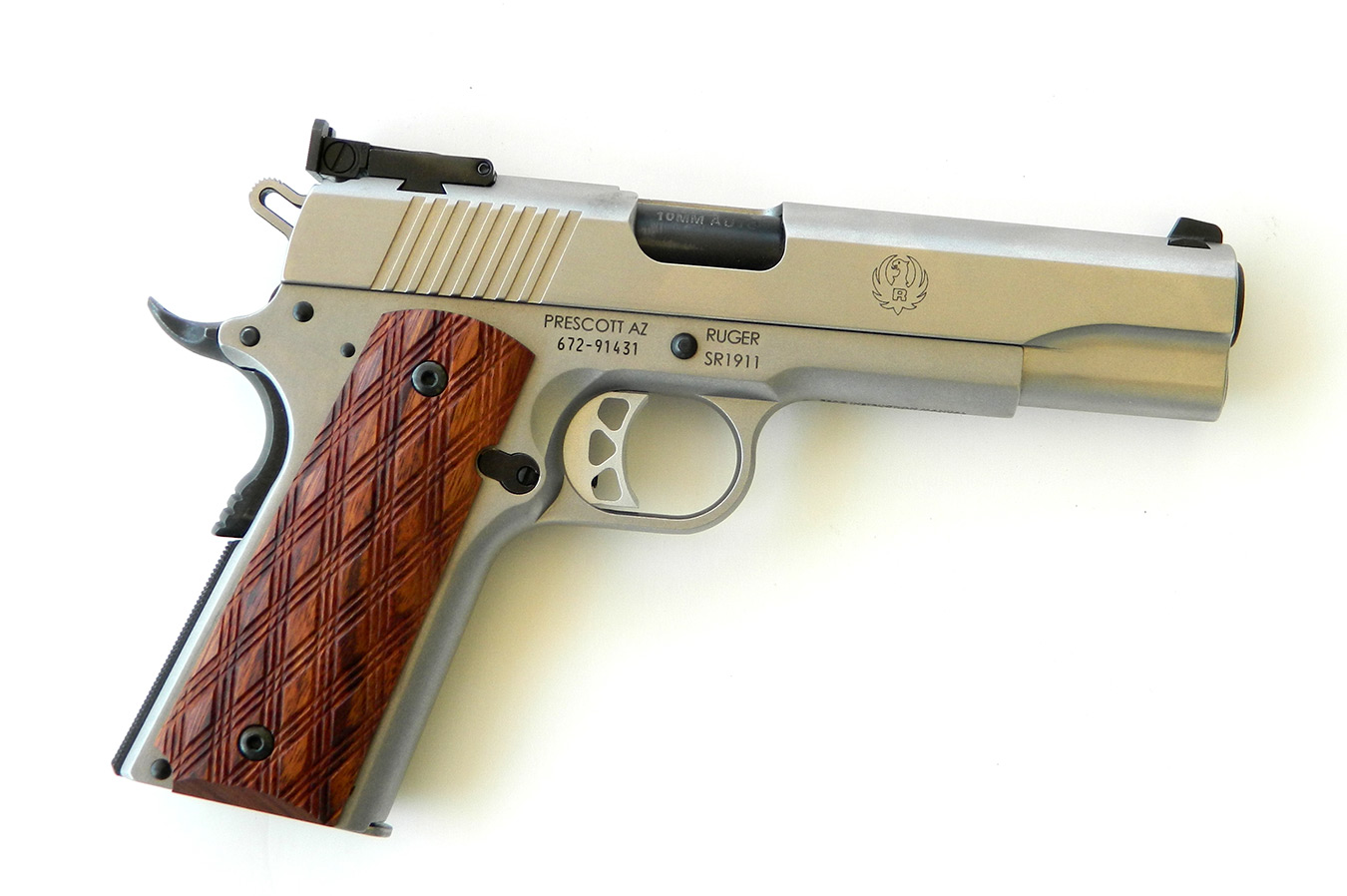

uger SR1911 fitted with Ahrend’s skip checkered grips
This Ruger SR1911 is fitted with Ahrend’s skip checkered grips.
Revolver speed loader versus a loaded moon clip, top view
A revolver speed loader aids in quickly loading a conventional revolver. The moon clip option, right, allows even faster loading providing the revolver is chambered for a self-loading pistol cartridge.
SIG Sauer Emperor Scorpion pistol right profile bronze color
The SIG Sauer Emperor Scorpion is among the most accurate 10mm handguns available.
Bob Campbell shooting a 1911 10mm pistol with a two-handed grip braced against a baricade
The Ruger 10mm is very accurate when firing from a solid braced firing position.

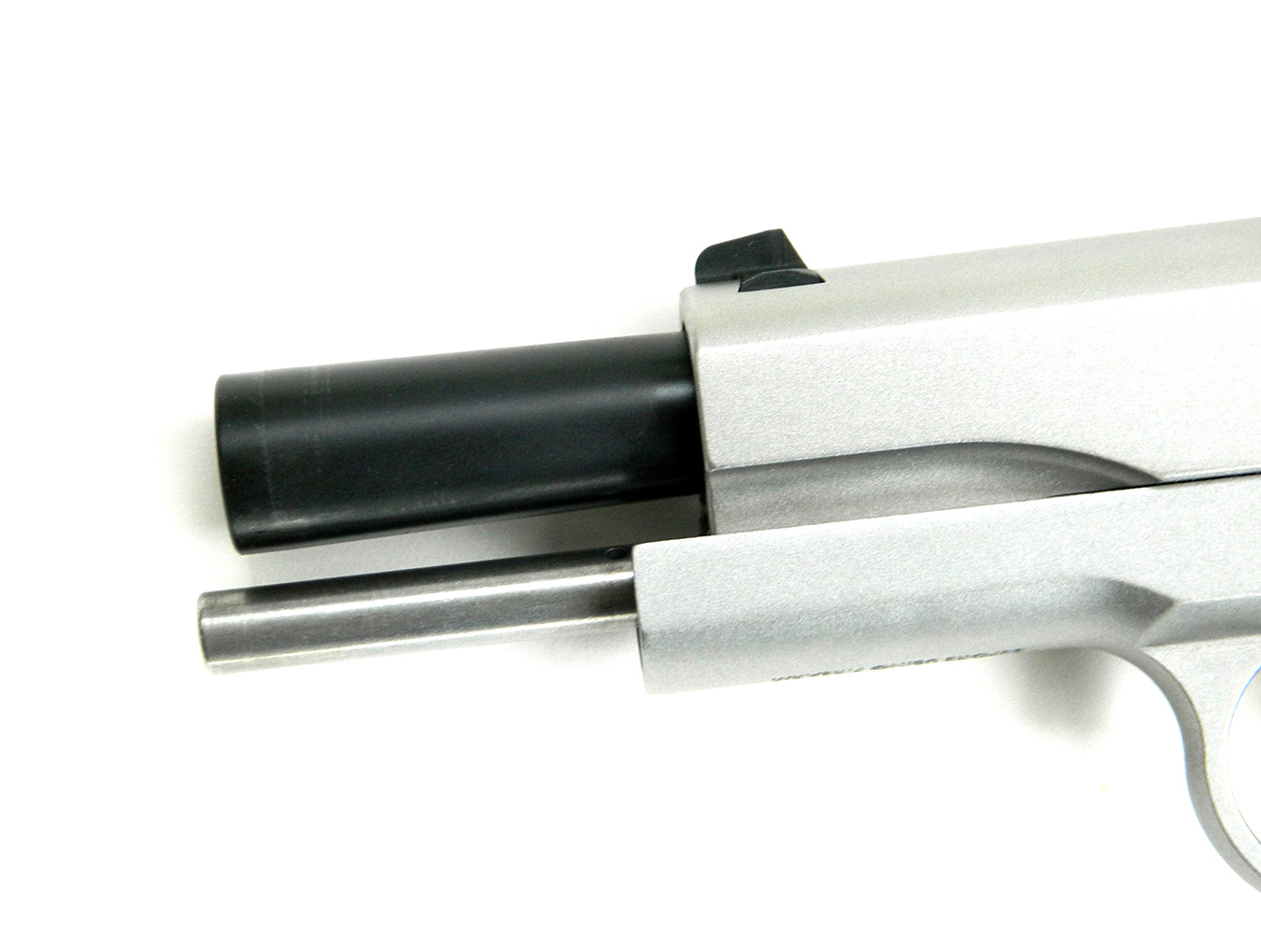

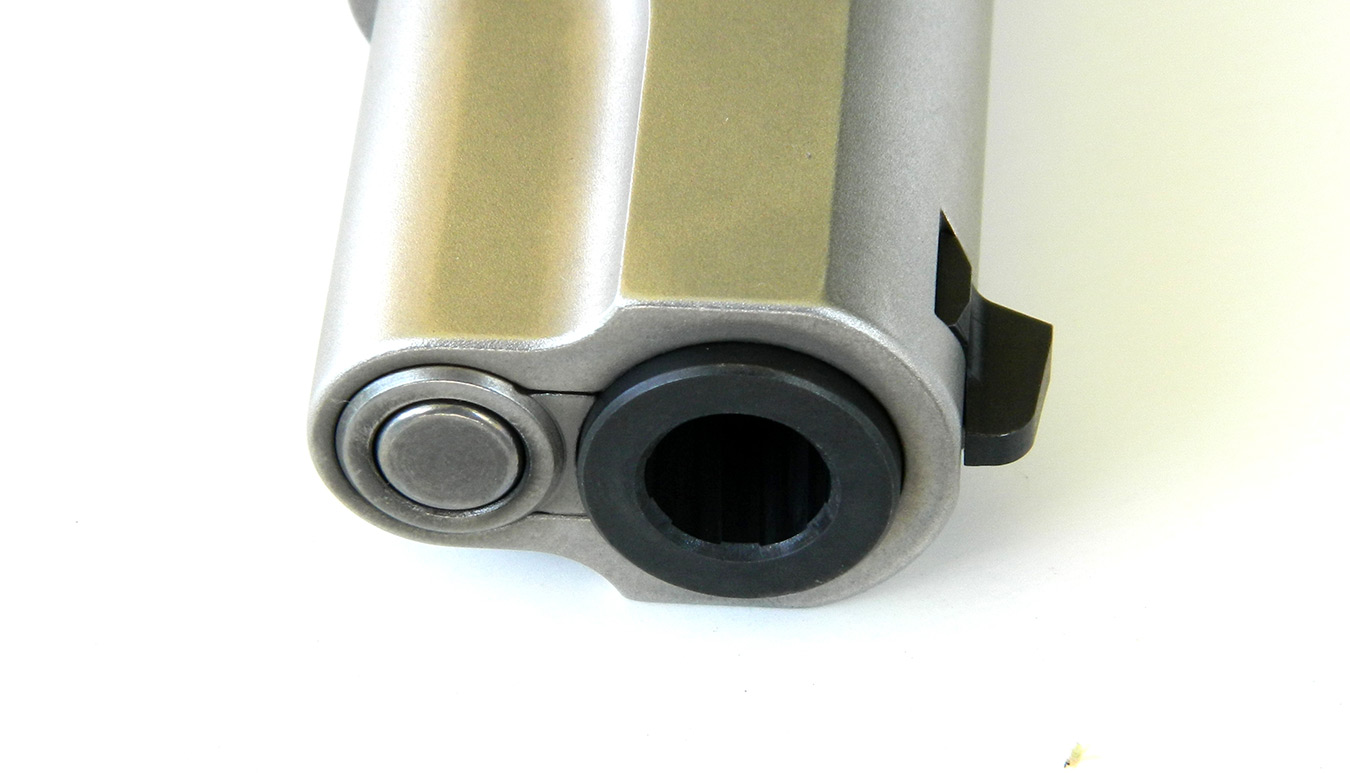

Ruger SR1911 10mm's bull barrel
The Ruger 10mm’s bull barrel is a good fit and offers excellent accuracy.
SIG Sauer Emperor Scorpion pistol left profile with Hornady Critical Duty ammunition box
A powerful 10mm handgun and well-chosen ammunition is a viable go anywhere do anything handgun.
Revolver speed loader versus a loaded moon clip, side view
The revolver speed loader, left, is efficient but not as fast as the revolver moon clip device, right.
Ruger 10mm revolver with a fixed sight quartering
Ruger’s fixed sight GP100, offered in .357 Magnum, will be an outstanding choice in the new 10mm chambering.

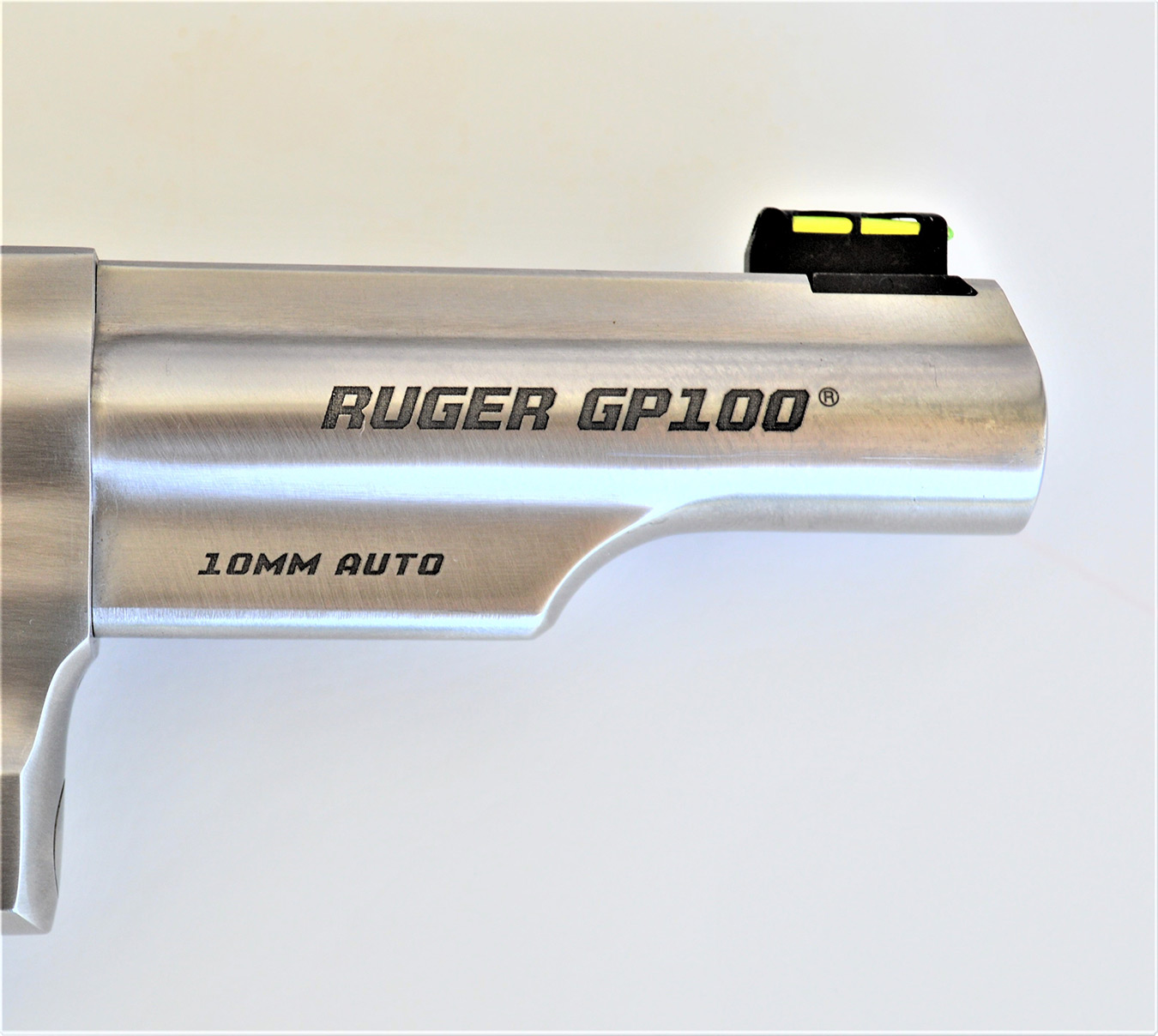

close up of the barrel taper on the Ruger GP100 REVOLVER BARREL
The barrel taper of the 10mm GP100 differs from the .357 Magnum GP100.
.357 Magnum revolver top and 10mm revolver bottom
The .357 Magnum, top, is well established but the 10mm GP100, bottom, is a viable alternative.
upset Hornady XTP bullet
Hornady’s XTP is among the best bullets ever designed for the 10mm.
Kimber 1911 pistol with red dot sight
Kimber offers thoroughly modern 1911 handguns.
Left to right: 9mm, 10mm and .45 pistols from Kimber.
Left to right: 9mm, 10mm and .45 pistols from Kimber. Each is useful.

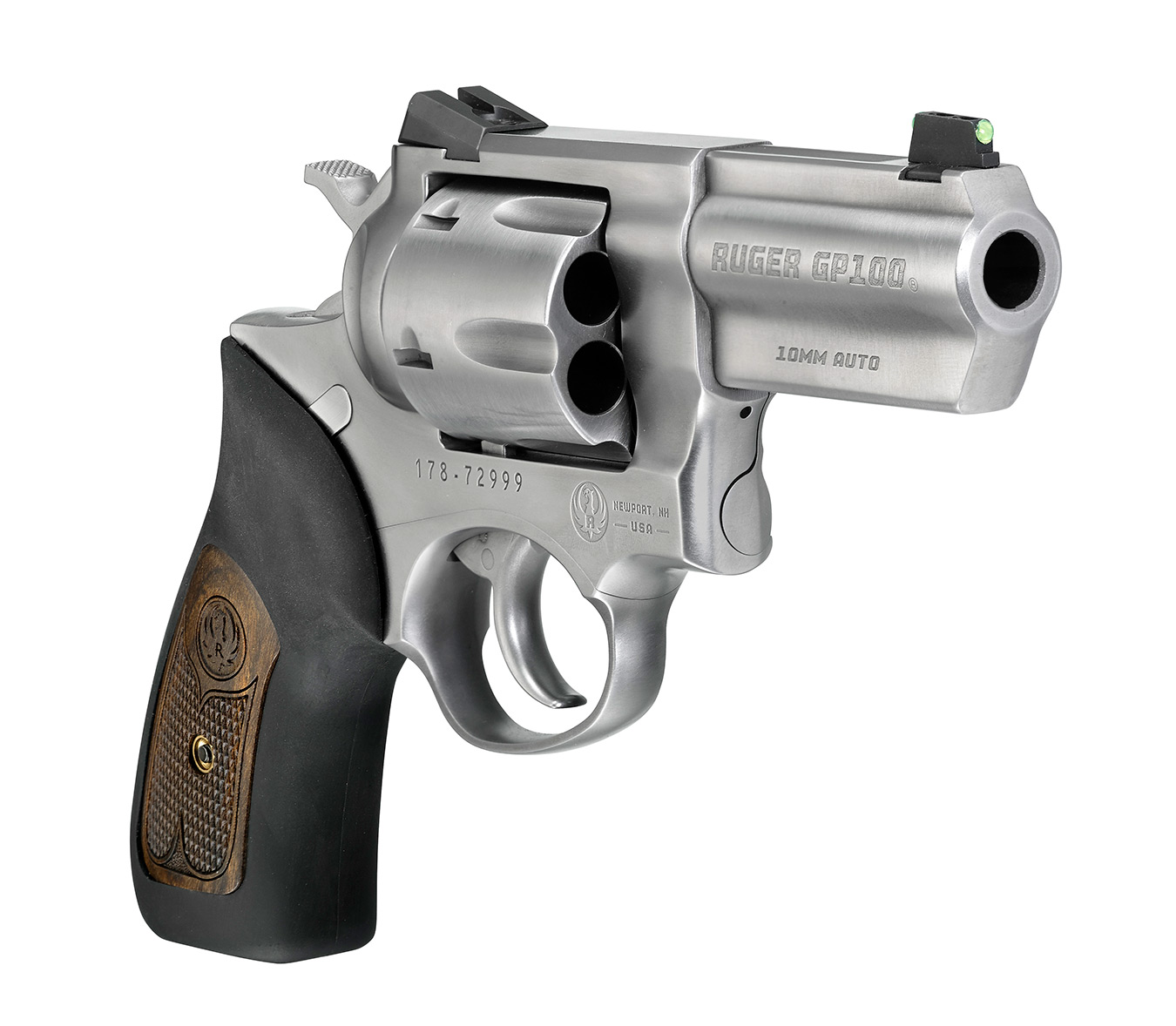

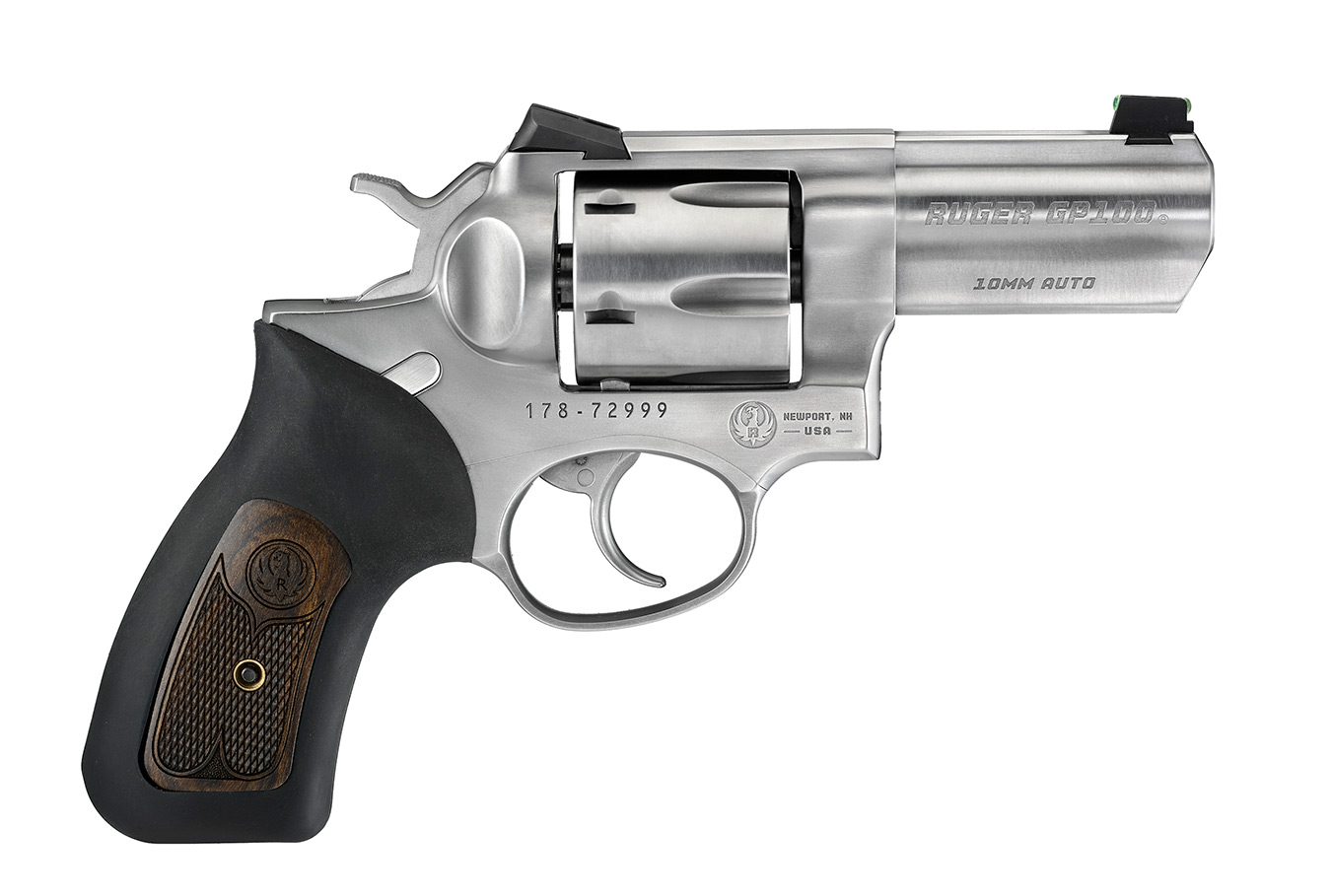

Ruger 10mm revolver with a fixed sight
Ruger also offers a fixed sight 10mm revolver that should prove to be among the best combat revolvers ever manufactured.

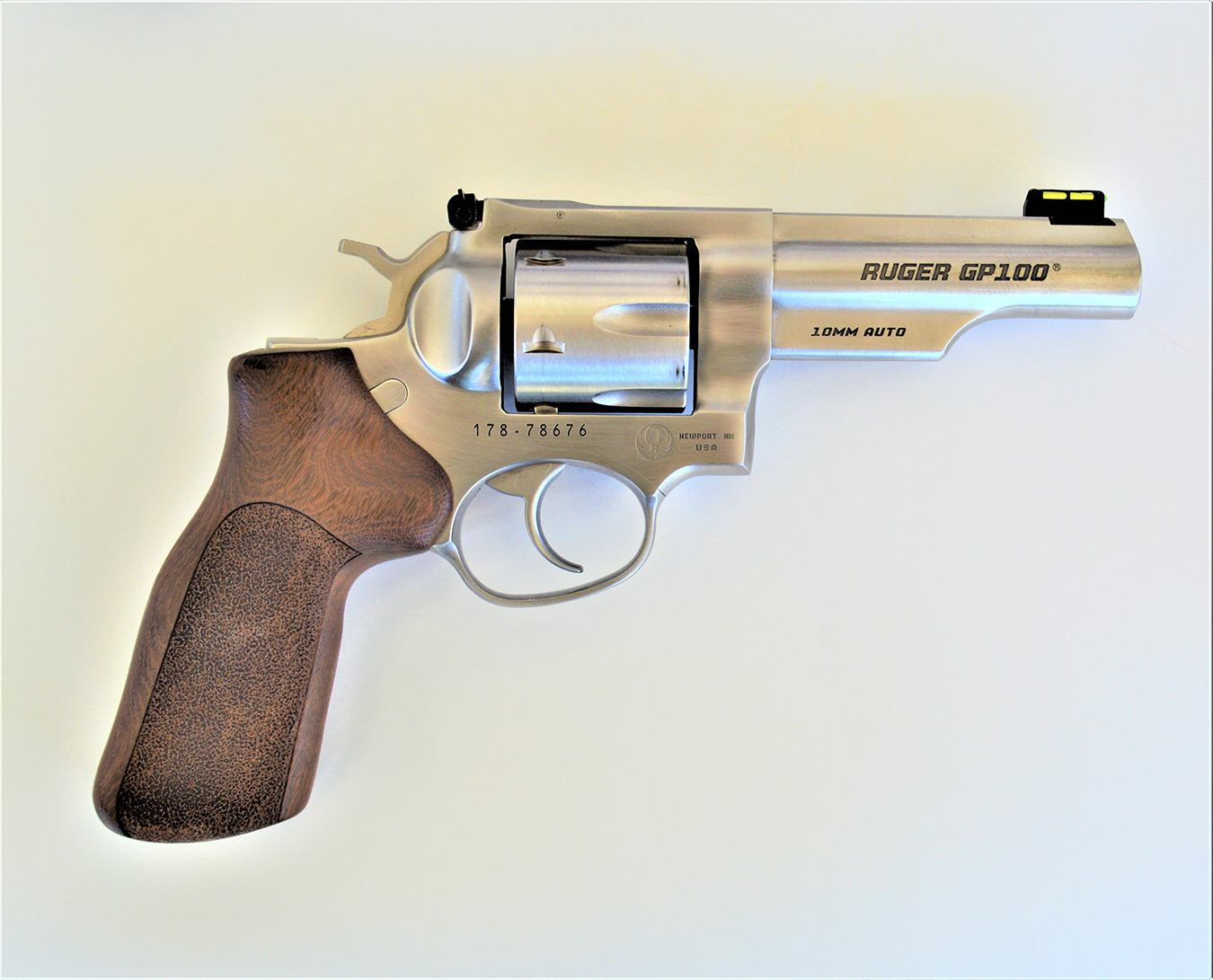

Ruger GP100 10mm revolver
The GP100 10mm is a great revolver—accurate, smooth in action and well-made of good material.
Kimber 10mm pistol right profile
The Kimber 10mm pistol is a first class all-around automatic.
10mm handgun with long slide
For hunting, the long slide 10mm is a good choice.
all-copper hollow point cartridge from Buffalo Bore Ammunition
Buffalo Bore’s all-copper hollow point is an outstanding choice.

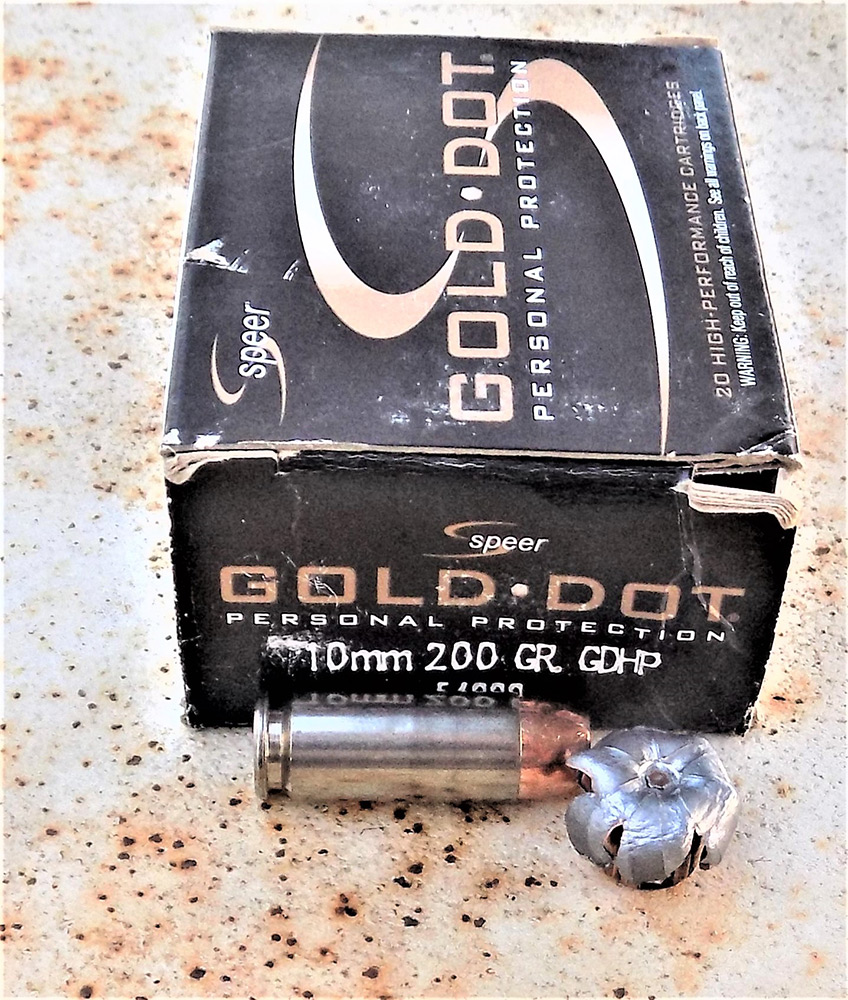

Worn box of Speer 10mm ammuntion
Speer’s Gold Dot 10mm is a highly developed, personal defense loading.

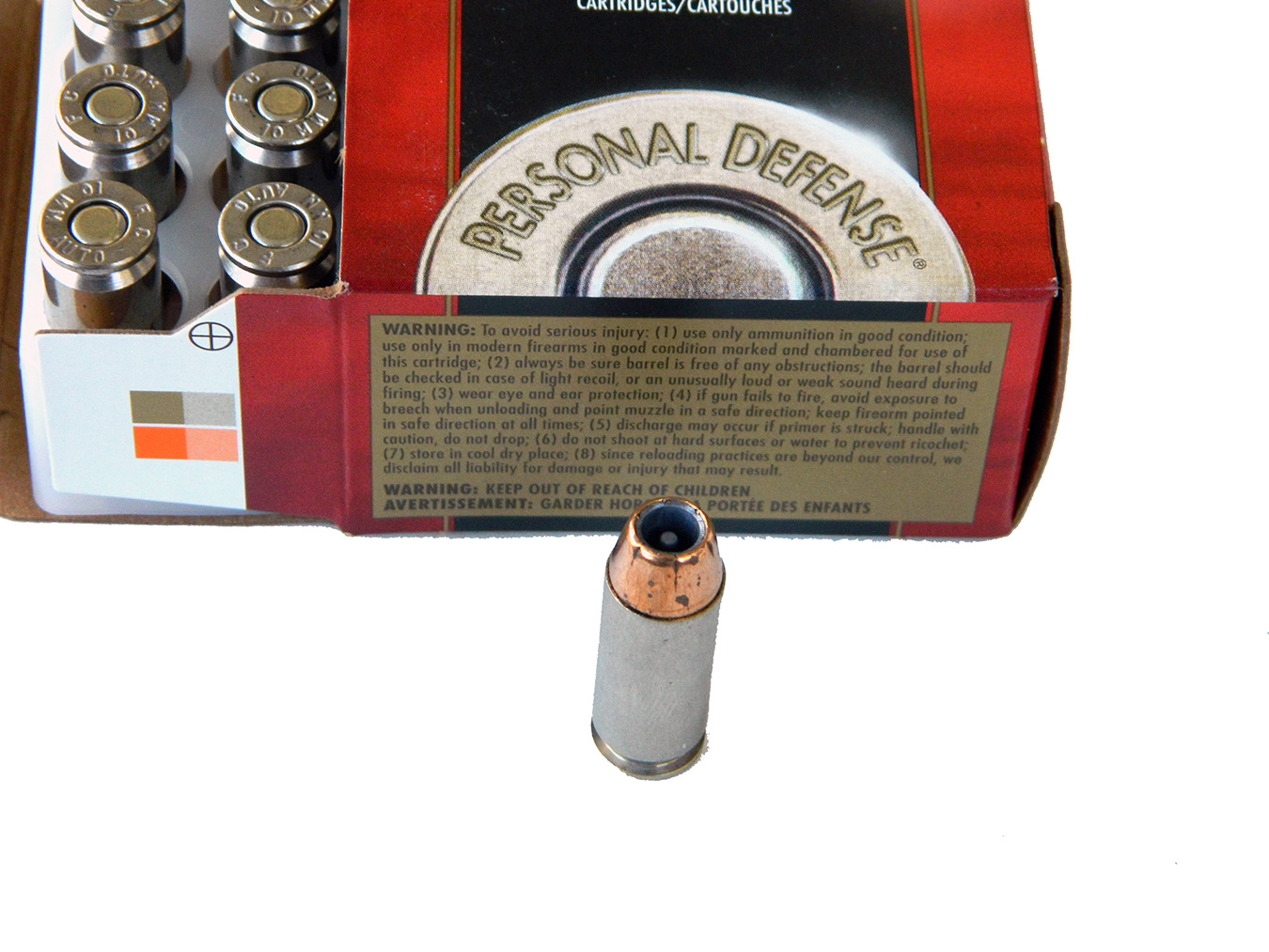

Open box of Federal 180-grain Hydra-Shok ammunition
The Federal 180-grain Hydra-Shok is a low recoil load that was once the standard of the FBI.

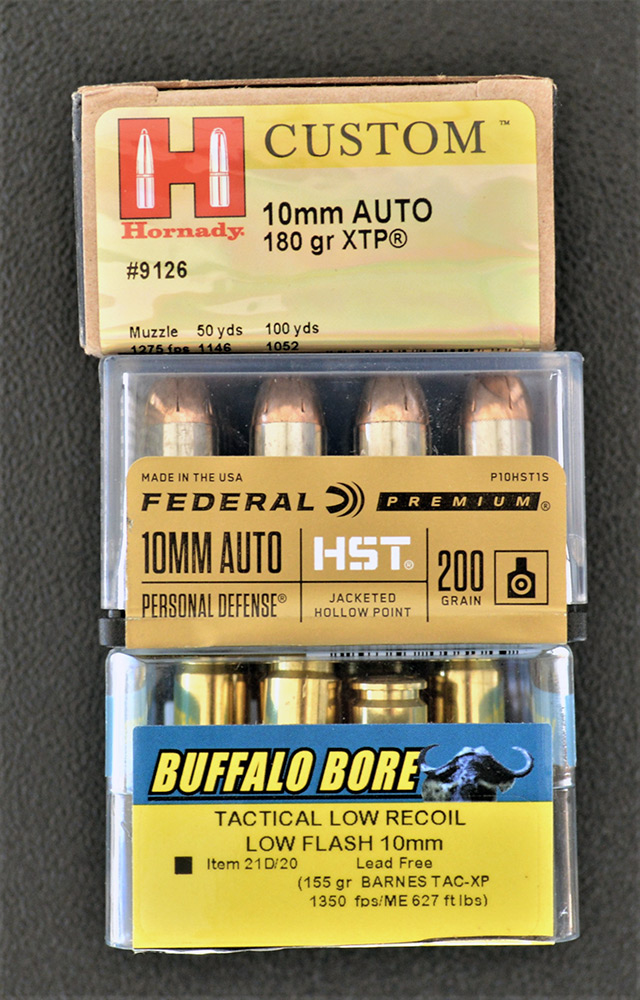

A wide assortment of 10mm ammunition
A wide assortment of loads are available in 10mm.
Bob Campbell shooting a 10mm pistol at an outdoor gun range
The 10mm is among a very few handgun cartridges useful at 50 yards.
